BrainMaster 2.5 Software User Manual

531-346 v1.0 2/10/2012 Page 8 of 82

REF

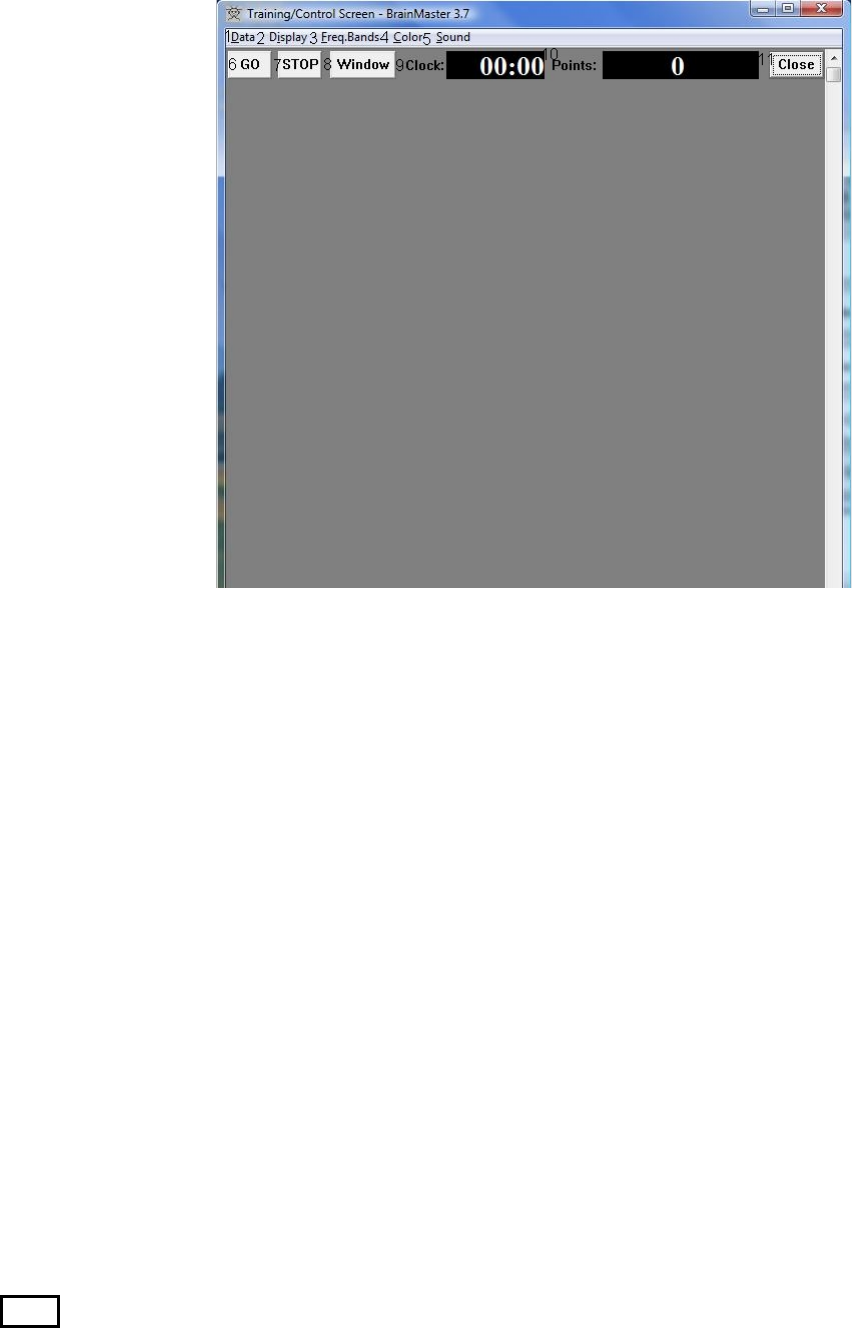

Training/Control Screen

1. Data Tab – Click to access COM, filter settings, playback options, and Atlantis Setup Menu.

2. Display Tab – Click to choose from various display options.

3. Freq. Bands Tab – Click to choose what filtered waveforms to display.

4. Color Tab – Click to choose between filtered waveforms to be displayed either in color or in

white.

5. Sound Tab – Click to choose your sound settings.

6. GO Button – Click to run a session. ***PLEASE NOTE: Be sure that before clicking GO that

your BrainMaster Unit is plugged in, installed, and the software is set to the proper COM Port.

7. STOP Button – Click to stop a session.

8. Window Button – Click to open the Window Menu.

9. Clock – Used to keep time for the Training session.

10.Points – Used to keep track of the amount of Reward points earned in a training session.

11.Close Button – Click to close the Training/Control Screen when completed. ***PLEASE

NOTE: If a session is ended before it is completed, it will be counted as a completed session.
